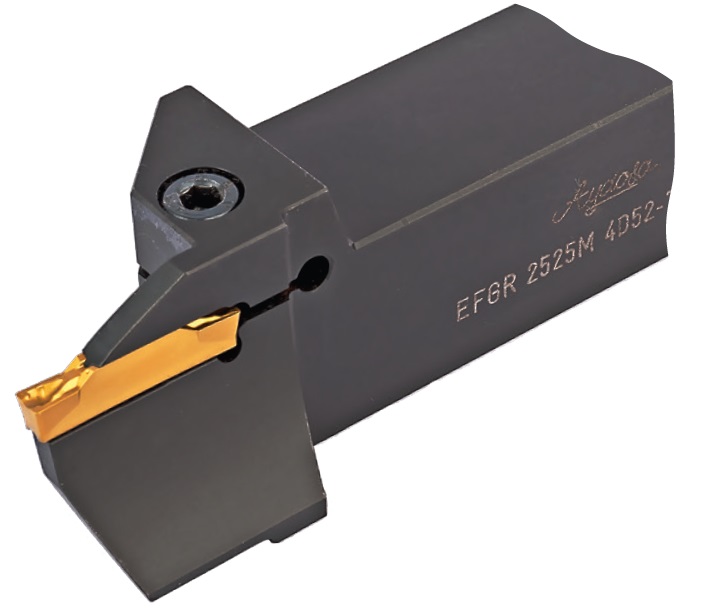

EFGR-L S123
| YEDEK PARÇALAR | ||||||||||||||

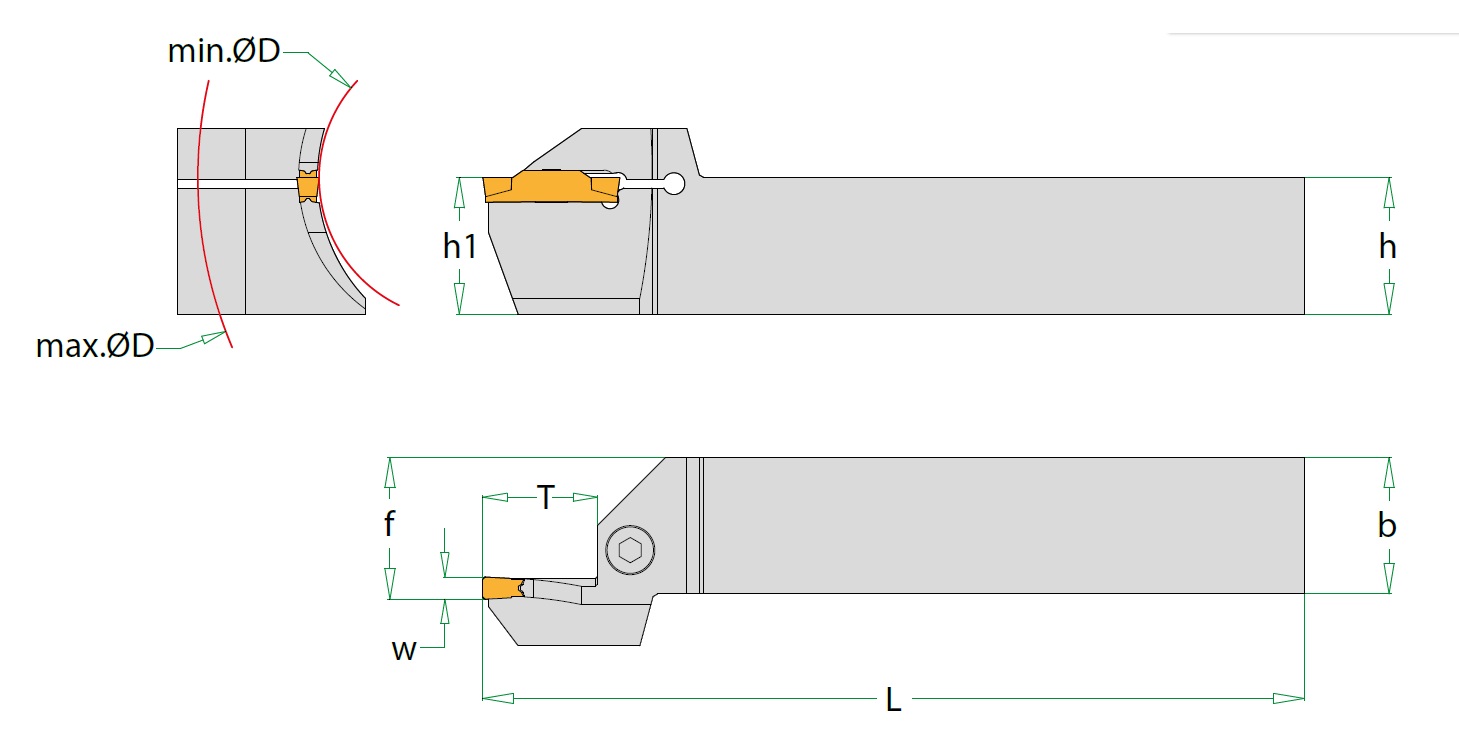

| Ürün kod no. | Uç | h | b | L | h1 | f | w | min Ø D |
max Ø D |
T | Cıvata | Cıvata Sıkma Torku |
||
| EFGR 2525M 4D52-72 S123 | S123.4 | 25 | 25 | 150 | 25 | 26 | 4 | 52 | 72 | 20 | M5x0.8-25mm | max 5.5 Nm | ||
| EFGR 2525M 4D64-100 S123 | S123.4 | 25 | 25 | 150 | 25 | 26 | 4 | 64 | 100 | 25 | M5x0.8-25mm | max 5.5 Nm | ||
| EFGR 2525M 4D92-140 S123 | S123.4 | 25 | 25 | 150 | 25 | 26 | 4 | 92 | 140 | 25 | M5x0.8-25mm | max 5.5 Nm | ||
| EFGR 2525M 4D132-230 S123 | S123.4 | 25 | 25 | 150 | 25 | 26 | 4 | 132 | 230 | 25 | M5x0.8-25mm | max 5.5 Nm | ||
| EFGR 2525M 4D220-500 S123 | S123.4 | 25 | 25 | 150 | 25 | 26 | 4 | 220 | 500 | 25 | M5x0.8-25mm | max 5.5 Nm |
