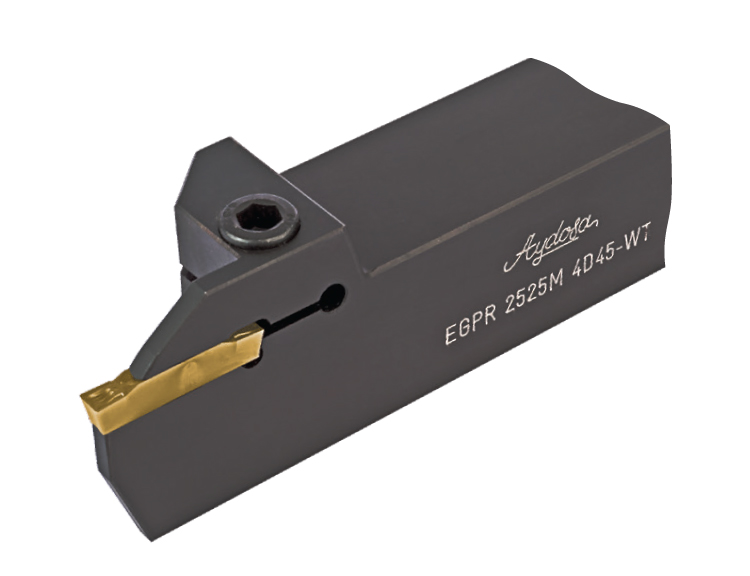

EGPR-L WT
| YEDEK PARÇALAR | |||||||||||||

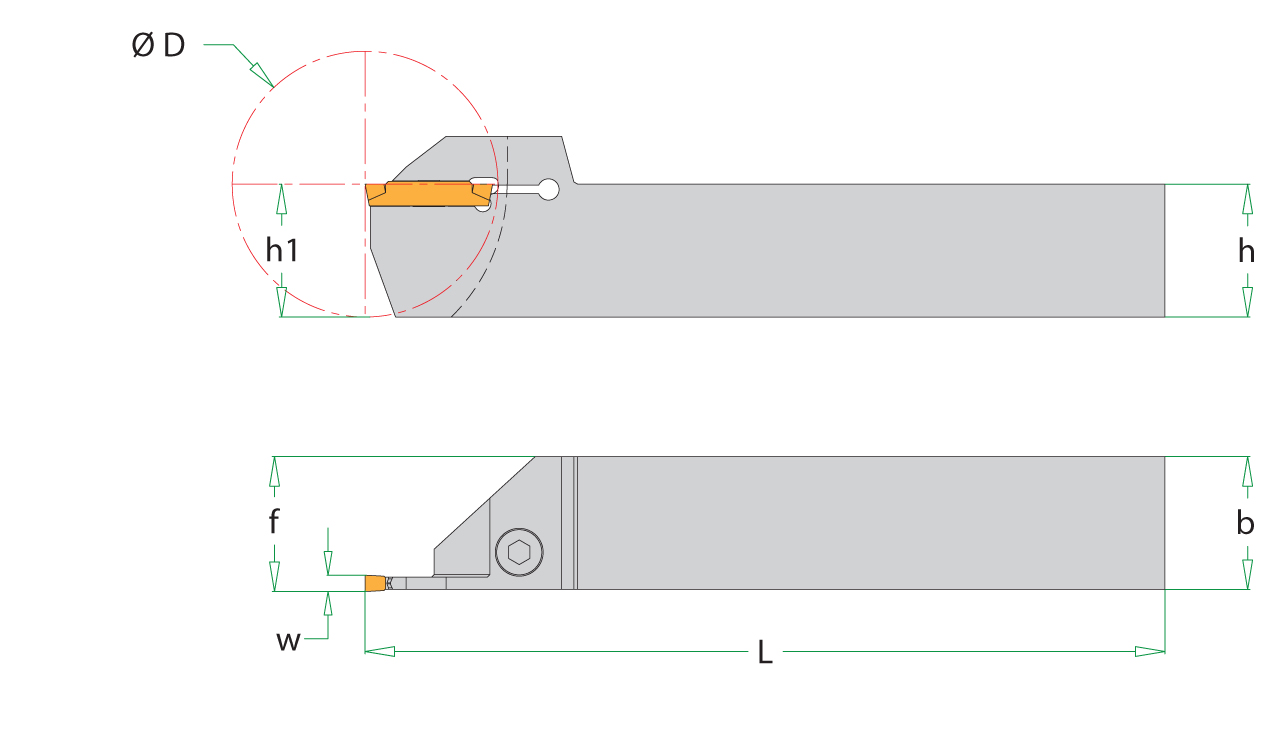

| Ürün kod no. | Uç | h | b | L | h1 | f | w | Ø D | T | Cıvata | Cıvata Sıkma Torku |
||
| EGPR-L 2020K 3D45-WT | GX-24-3 | 20 | 20 | 125 | 20 | 20,4 | 3 | 45 | - | M5x0.8-25mm | max 5.5 Nm | ||
| EGPR-L 2525M 3D45-WT | GX-24-3 | 25 | 25 | 150 | 25 | 25,4 | 3 | 45 | - | M5x0.8-25mm | max 5.5 Nm | ||
| EGPR-L 2020K 4D45-WT | GX-24-4 | 20 | 20 | 125 | 20 | 20,4 | 4 | 45 | - | M5x0.8-25mm | max 5.5 Nm | ||
| EGPR-L 2525M 4D45-WT | GX-24-4 | 25 | 25 | 150 | 25 | 25,4 | 4 | 45 | - | M5x0.8-25mm | max 5.5 Nm | ||
| EGPR-L 2020K 5D45-WT | GX-24-5 | 20 | 20 | 125 | 20 | 20,5 | 5 | 45 | - | M5x0.8-25mm | max 5.5 Nm | ||
| EGPR-L 2525M 5D45-WT | GX-24-5 | 25 | 25 | 150 | 25 | 25,5 | 5 | 45 | - | M5x0.8-25mm | max 5.5 Nm |
