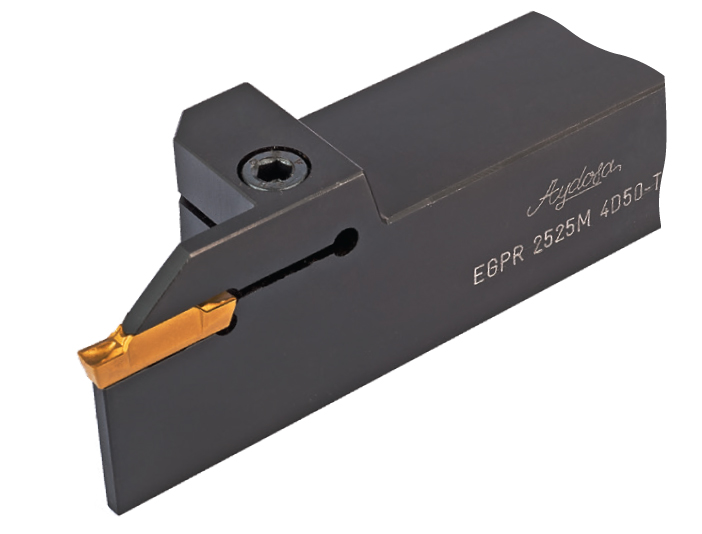

EGPR-L T3
| YEDEK PARÇALAR | |||||||||||||

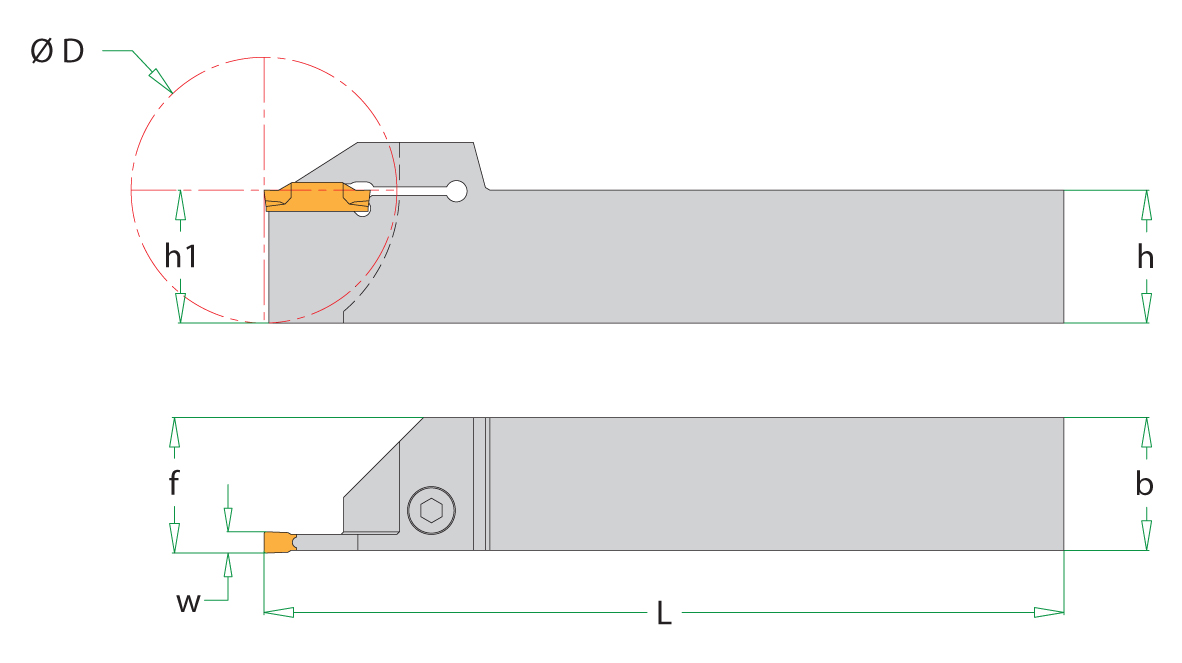

| Ürün kod no. | Uç | h | b | L | h1 | f | w | Ø D | T | Cıvata | Cıvata Sıkma Torku |
||
| EGPR-L 1616K 2D35-T3 | T3-2 | 16 | 16 | 125 | 16 | 16,2 | 2 | 35 | - | M5x0.8-25mm | max 3.5 Nm | ||
| EGPR-L 2020K 2D35-T3 | T3-2 | 20 | 20 | 125 | 20 | 20,2 | 2 | 35 | - | M5x0.8-25mm | max 3.5 Nm | ||
| EGPR-L 2525M 2D35-T3 | T3-2 | 25 | 25 | 150 | 25 | 25,2 | 2 | 35 | - | M5x0.8-25mm | max 3.5 Nm | ||
| EGPR-L 1616K 3D40-T3 | T3-3 | 16 | 16 | 125 | 16 | 16,4 | 3 | 40 | - | M5x0.8-25mm | max 5.5 Nm | ||
| EGPR-L 2020K 3D40-T3 | T3-3 | 20 | 20 | 125 | 20 | 20,4 | 3 | 40 | - | M5x0.8-25mm | max 5.5 Nm | ||
| EGPR-L 2525M 3D40-T3 | T3-3 | 25 | 25 | 150 | 25 | 25,4 | 3 | 40 | - | M5x0.8-25mm | max 5.5 Nm | ||
| EGPR-L 2020K 4D50-T3 | T3-4 | 20 | 20 | 125 | 20 | 20,5 | 4 | 50 | - | M5x0.8-25mm | max 5.5 Nm | ||
| EGPR-L 2525M 4D50-T3 | T3-4 | 25 | 25 | 150 | 25 | 25,5 | 4 | 50 | - | M5x0.8-25mm | max 5.5 Nm |
